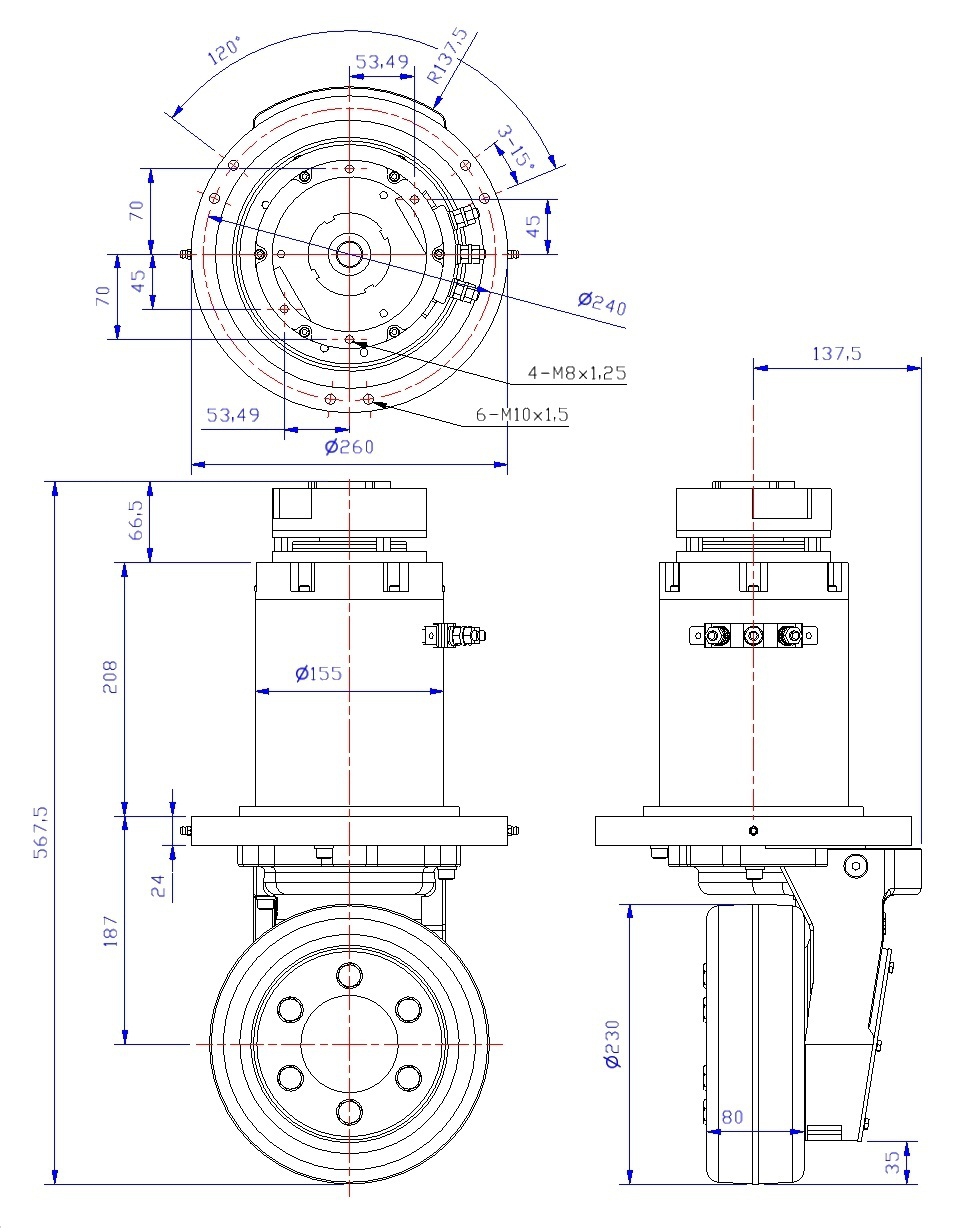

AC1600W Vertical Drive Wheel

Specifications
Model Voltage/Freq Power Speed Reduction Ratio Max Wheel Load
G022BQ2A161 16V/100Hz 1600W 2850RPM 23.5 1200Kg
Wheel Torque Load Current Drive Speed Electrical Brake Field Weight
212N-m 85A 5.3Km/h 16 N-m AC Induction 53Kg
