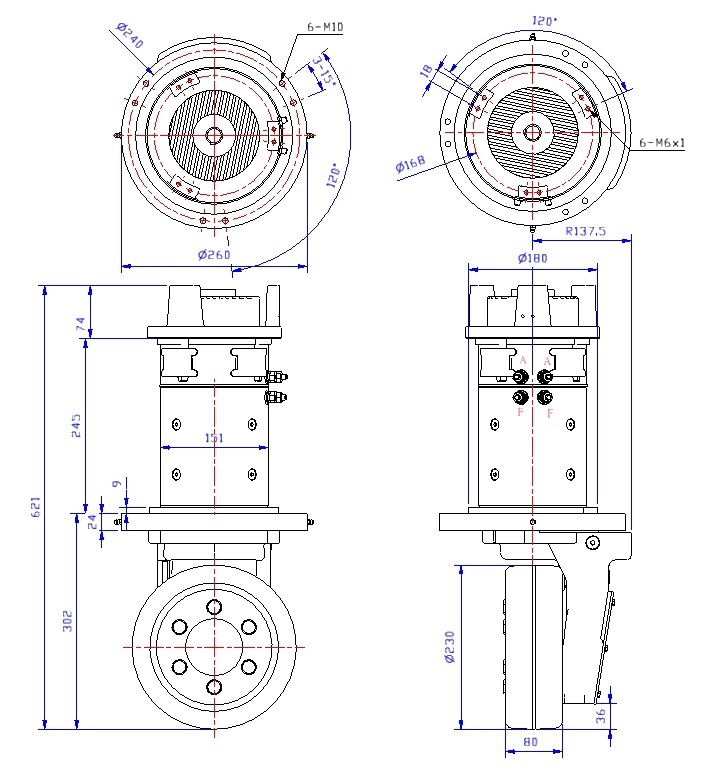

DC1600W Vertical Drive Wheel

Specifications
Model Voltage Power Speed Reduction Ratio Max Wheel Load
GO22BT1A01 24V 1600W 2100RPM 23.5 1200Kg
Wheel Torque Load Current Drive Speed Electrical Brake Field Weight
176N-m 85A 4Km/h 16N-m DC Series Excited 55Kg
